Subwoofer Driver | 700 W Peak Power | 250 mm (10 in.) | 4 ohm

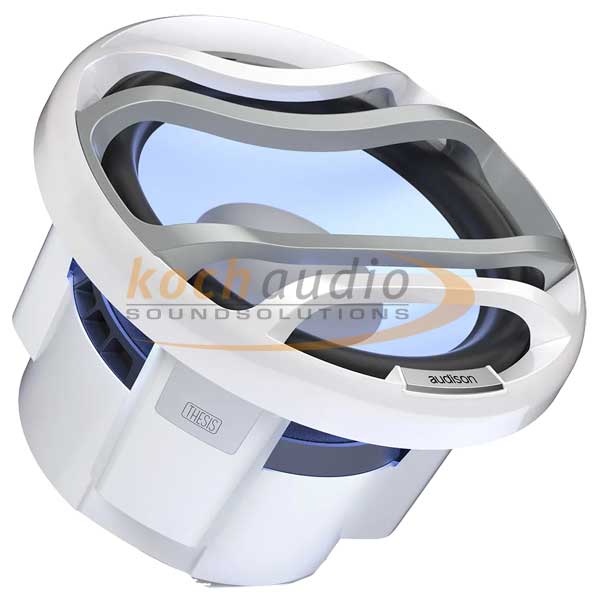

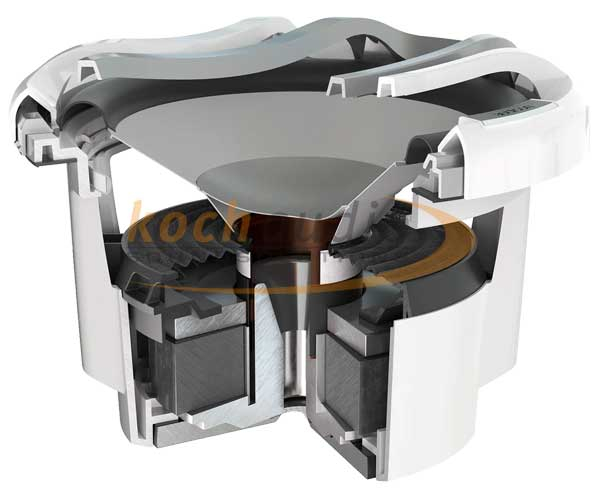

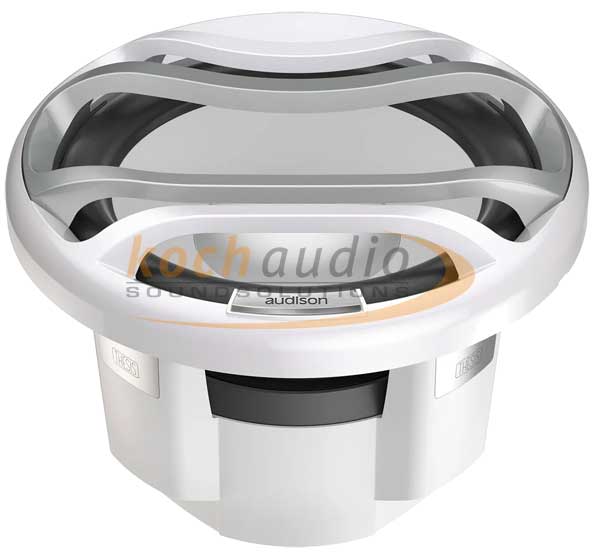

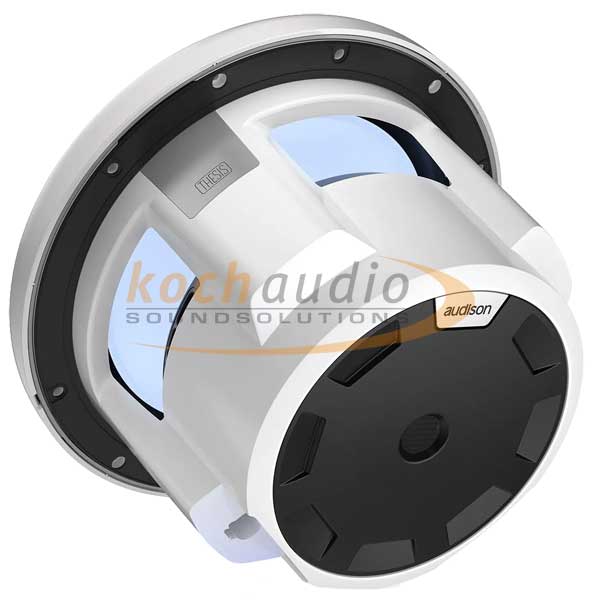

Audison TH 10 BASSO brings deep, powerful bass to the music you love. This 10″ marine subwoofer delivers dynamic low frequencies with precise control, adding warmth to familiar recordings and energy to every beat. Designed for open-air listening, it preserves definition even at high volumes, enriching the Thesis audiophile experience on board. Built for life at sea, TH 10 BASSO combines marine-grade construction with distinctive Italian design. The sculpted DOUBLE WAVE grille gives it an unmistakable presence, making sound and design part of the pleasure of life on board. TH 10 BASSO is the floor of the experience. On open water there are no walls to build the bass against, so every millimetre of excursion and every choice of material works to keep low frequencies deep and articulate at any volume. 350 W RMS of controlled power, engineered to give the whole system its foundation. Technical Specs
Nominal diameter 250 mm (10 in)
Impedance 4 Ohm
Power Handling - Peak 700 W
Sensitivity 89.5 dB
Frequency Response 30-500 Hz
Voice Coil Ø 60.5 mm
Chassis Material PLASTIC
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 150 x 70 x 36 mm
Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material POLYPROPYLENE WITH UV INHIBITORS
Surround Material RUBBER
Xmax 20.6 mm (0.81 in)
Xmech 15.1 mm (0.59 in)
Voice Coil Winding Height 35.2 mm (1.39 in)
Gap Height 10 mm (0.39 in)
Recommended Enclosure 80 l (2.825 ft) Electric-acoustic Specs
D 327 cm² (50.685 in²)
Re 3 Ohm
Fs 50 Hz
Le 0.32 mH
Vas 20.3 l (0.717 ft)
Mms 77.5 g (2.734 oz)
Cms 0.13 mm/N
BL 8.6 T•m
Qts 0.864
Qes 0.956
Qms 8.9 General
Weight 7.3 kg Dimensions
Dimension A 273 mm (10.75 in)
Dimension B 225 mm (8.86 in)
Dimension C 189.5 mm (7.46 in)
Dimension D 145.5 mm (5.73 in)
Dimension E 44 mm (1.73 in)
Dimension U 247 mm (9.72 in)
Dimension V 5.5 mm (0.22 in)
