- Coaxial | 300 W Peak Power | 196 mm (7.7 in.) | 4 ohm

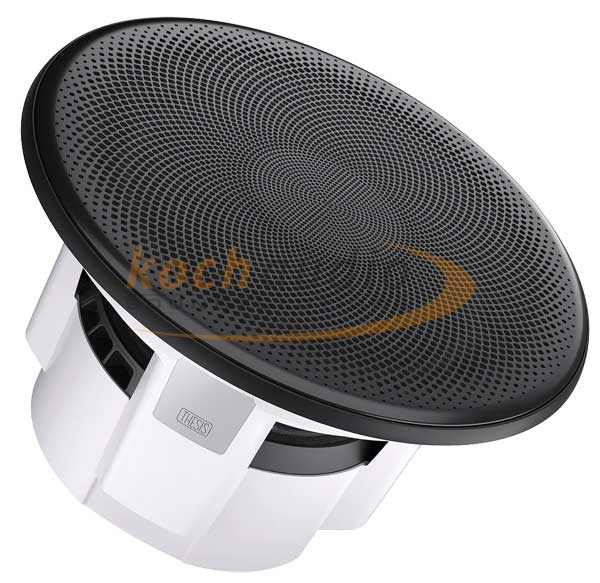

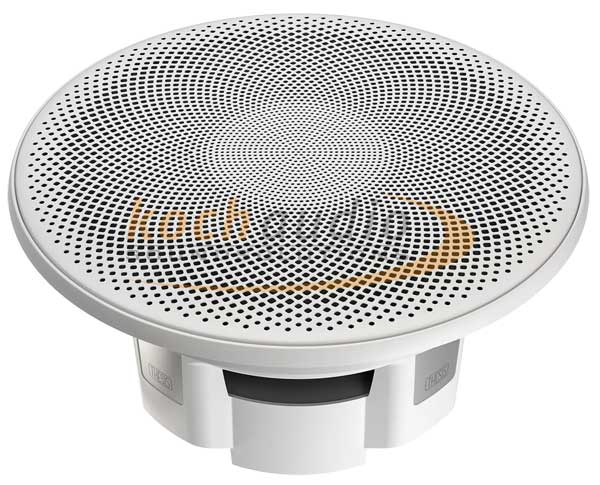

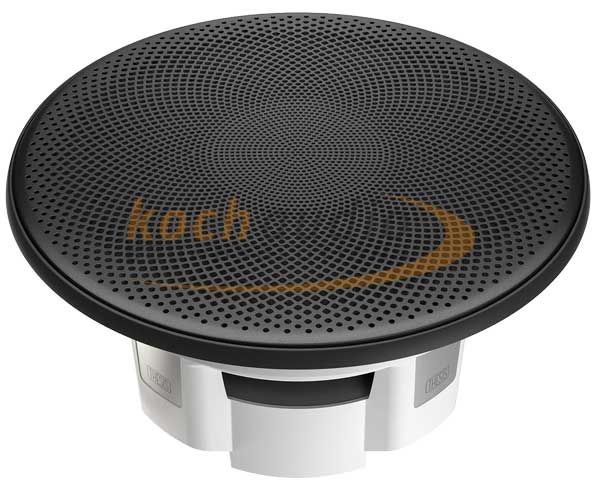

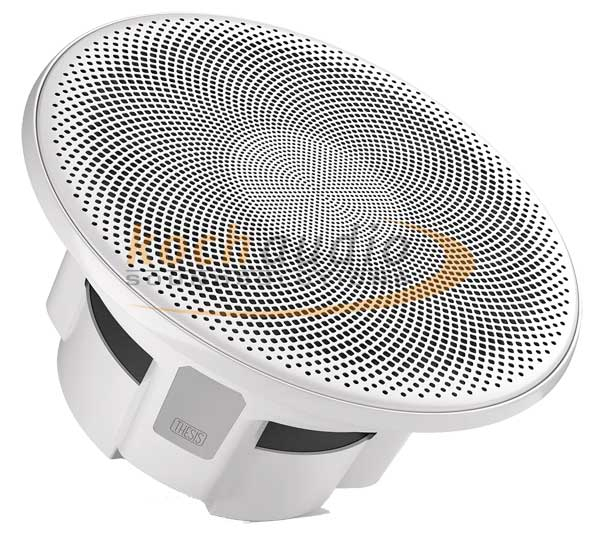

- Audison TH 77 SAX INTEGRA makes the Thesis audiophile experience part of your yacht’s architecture, bringing the music you love into harmony with your surroundings. This 7.7″ marine coaxial speaker features Hi-Res Audio certification and a 1.5″ tweeter with a frequency response extending to 40 kHz, revealing voices and instruments with natural clarity and expressive detail. The flush-fitting, frameless design blends into ceilings, panels and cabinetry, while the INTEGRA parametric grille adds a subtle visual signature. Available in white or black and designed to withstand salt, UV exposure and vibration, it brings together discreet Italian design and the pleasure of listening on board. TH 77 SAX INTEGRA delivers the identical driver, certification and performance of the standard version in a completely flush-mount body. Nothing interrupts the line of a cabin ceiling or a hull side: only the sound remains. Available in white and black, for interiors and exteriors that ask for discretion.
Technical Specs LF
- Woofer Size 196 mm (7.7 in)
- Impedance 4 Ohm
- Power Handling - Peak 300 W
Power Handling - Continuous 150 W
- Sensitivity 91 dB
- Frequency Response 44-40000
- Voice Coil Diameter 38.6 mm
- Chassis Material PLASTIC
- Magnet Material NEODYMIUM
Magnet Size 83-51-8
- Voice Coil Material CCAW
Former Material GLASS FIBER
Cone Material POLYPROPYLENE WITH UV INHIBITORS
Surround Material RUBBER
- Xmax 7 mm (0.28 in)
Xmech 11 mm (0.43 in)
- Gap Height 8 mm (0.31 in)
- Voice Coil Winding Height 18 mm (0.71 in)
Technical Specs HF
- Tweeter Size 38 mm (1.5 in)
- Impedance 6 Ohm
- Voice Coil Diameter 34 mm
Voice Coil Material CCAW
Former Material GLASS FIBER
Dome Material TETOLON
- Tweeter Magnet Size 54-36-5
Magnet Material NEODYMIUM
Electric-acoustic Specs
- D 169.7 cm² (26.3 in²)
- Re 3.4 Ohm
- Fs 64 Hz
- Mms 22.2 g (0.78 oz)
- Cms 0.27
- Bl 6.1
- Qms 13.38
Qes 0.81
Qts 0.77
- Vas 11.1 l (0.39 ft)
- LE 0.64 mH
General
- Weight 2.3 kg
Dimensions
- Dimension A 232 mm (9.13 in)
Dimension B 191 mm (7.52 in)
Dimension C 122.1 mm (4.81 in)
Dimension D 111 mm (4.37 in)
Dimension E 11.1 mm (0.44 in)
Dimension U 208 mm (8.19 in)
Dimension V 4.5 mm (0.18 in)
- Preis pro Paar
