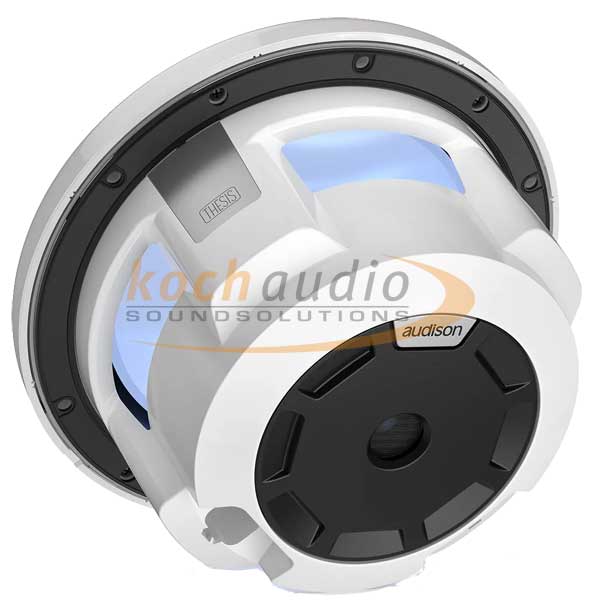

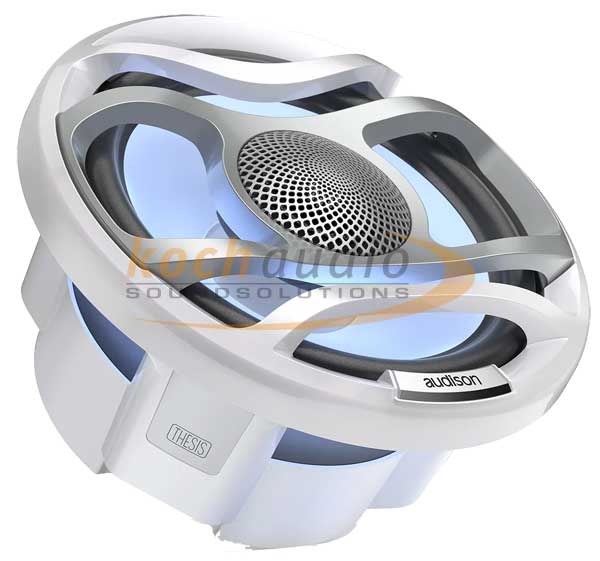

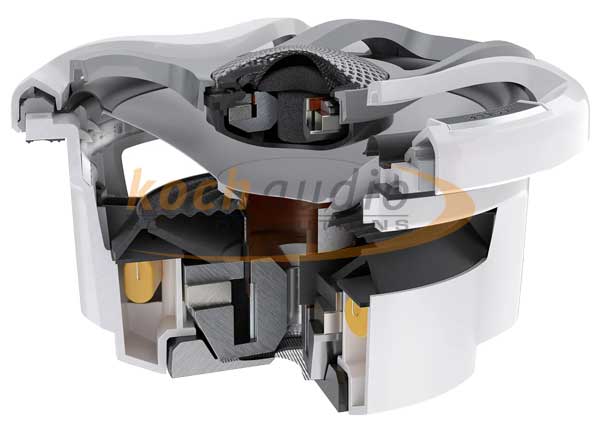

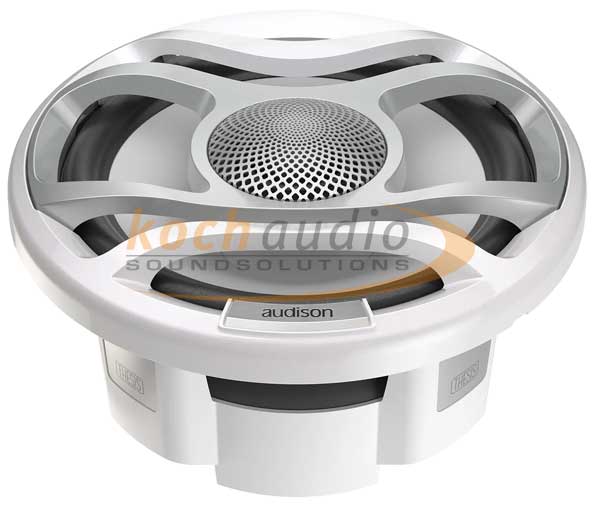

Coaxial | 300 W Peak Power | 196 mm (7.7 in.) | 4 ohm
TH 77 SAX brings the Thesis reference to the zones where space is measured. The same 1.5 in. tweeter as the rest of the collection, extended to 40 kHz and certified Hi-Res Audio, in a 7.7 in. coaxial engineered for salt, ultraviolet light and vibration. The double-wave grille disperses sound across open decks while deflecting water, and integrated RGB CCT lighting makes the speaker part of the design of the vessel. Technical Specs LF
Woofer Size 196 mm
Impedance 4 Ohm
Power Handling - Peak 300 W
Power Handling - Continuous 150 W
Sensitivity 91 dB
Frequency Response 44-40000
Voice Coil Diameter 38.6 mm
Chassis Material PLASTIC
Magnet Material NEODYMIUM
Magnet Size 83-51-8
Voice Coil Material CCAP - COPPER CLAD ALLUMINIUM RIBBON
Former Material GLASS FIBER
Cone Material POLYPROPYLENE WITH UV INHIBITORS
Surround Material RUBBER
Voice Coil Material CCAW
Former Material GLASS FIBER
Dome Material TETOLON
Tweeter Magnet Size 54-36-5
Magnet Material NEODYMIUM Electric-acoustic Specs
D 169.7 cm² (26.3 in²)
Re 3.4 Ohm
Fs 64 Hz
Mms 22.2 g (0.78 oz)
Cms 0.27
Bl 6.1
Qms 13.38
Qes 0.81
Qts 0.77
Vas 11.1 l (0.39 ft)
LE 0.64 mH General
Weight 2.1 kg Dimensions
Dimension A 196 mm (7.72 in)
Dimension B 159 mm (6.26 in)
Dimension C 114 mm (4.49 in)
Dimension D 85.5 mm (3.37 in)
Dimension E 28.5 mm (1.12 in)
Dimension U 176 mm (6.93 in)
Dimension V 4.8 mm (0.19 in)
