Coaxial | 440 W Peak Power | 224 mm (8.8 in.) | 4 ohm

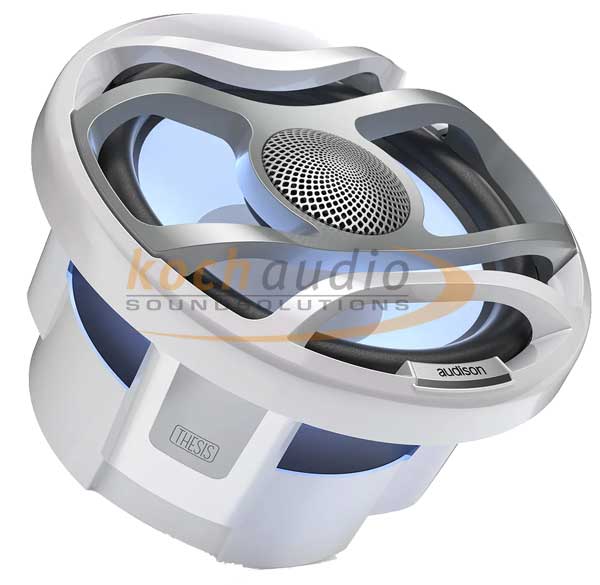

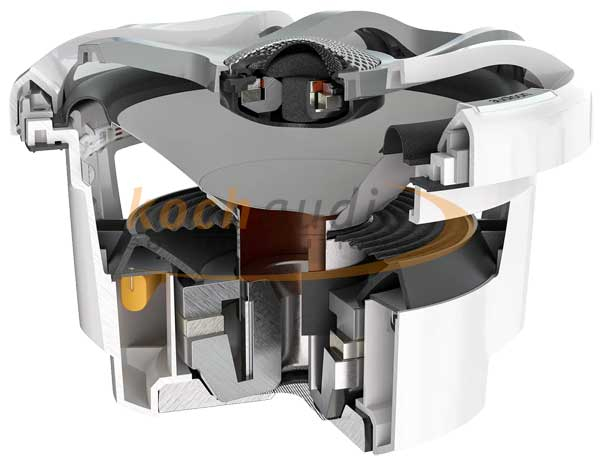

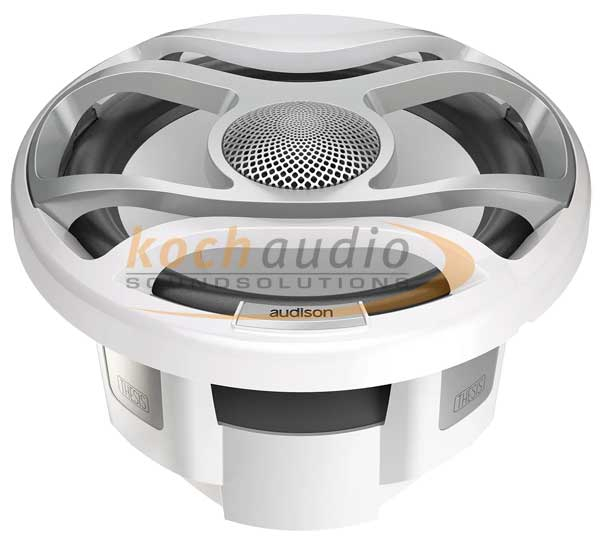

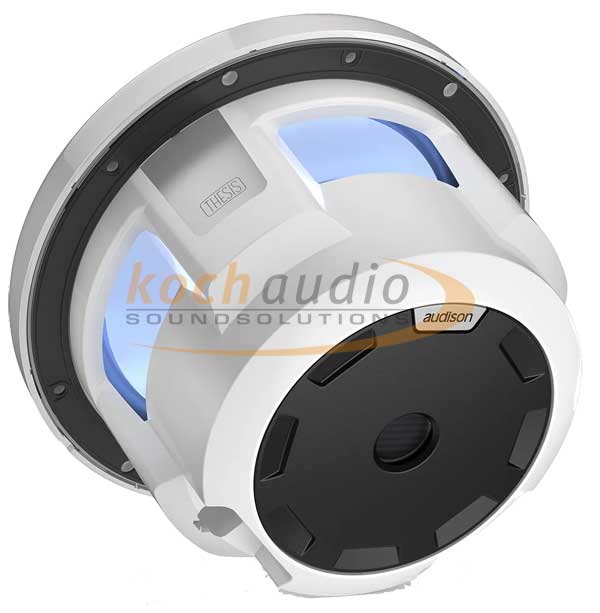

TH 88 SAX is the flagship of the collection and the product that made Audison the only marine audio brand with systems certified Hi-Res Audio. Its 1.5 in. tweeter, the largest in the marine market, crosses over lower with the woofer for a coherent midrange, and reaches 40 kHz where the format usually stops. From 36 Hz to 40 kHz, the full spectrum, in the hardest listening room there is. Technical Specs LF
Woofer Size 224 mm (8.8 in)
Impedance 4 Ohm
Power Handling - Peak 440 W
Power Handling - Continuous 220 W
Sensitivity 91 dB
Frequency Response 36-40000
Voice Coil Diameter 51.8 mm
Chassis Material PLASTIC
Magnet Material NEODYMIUM
Magnet Size 102-70-7
Voice Coil Material CCAP - COPPER CLAD ALLUMINIUM RIBBON
Former Material GLASS FIBER
Cone Material POLYPROPYLENE WITH UV INHIBITORS
Surround Material RUBBER
Xmax 10.75 mm (0.42 in)
Xmech 14 mm (0.55 in)
Gap Height 7 mm (0.28 in)
Voice Coil Winding Height 25 mm (0.98 in)
Recommended Enclosure 70 l Technical Specs HF
Tweeter Size 38 mm (1.5 in)
Impedance 6 Ohm
Voice Coil Material CCAW
Dome Material TETOLON
Tweeter Magnet Size 54x36x5
Magnet Material NEODYMIUM Electric-acoustic Specs
D 220.3 cm² (34.15 in²)
Re 3.34 Ohm
Fs 52 Hz
Mms 35 g (1.23 oz)
Cms 0.25
Bl 7.2
Qms 8.8
Qes 0.77
Qts 0.7
Vas 10.3 l (0.36 ft)
LE 0.52 mH Dimensions
Dimension A 224 mm (8.82 in)
Dimension B 187 mm (7.36 in)
Dimension C 150 mm (5.91 in)
Dimension D 112.5 mm (4.43 in)
Dimension E 37.5 mm (1.48 in)
Dimension U 202 mm (7.95 in)
Dimension V 4.8 mm (0.19 in)
