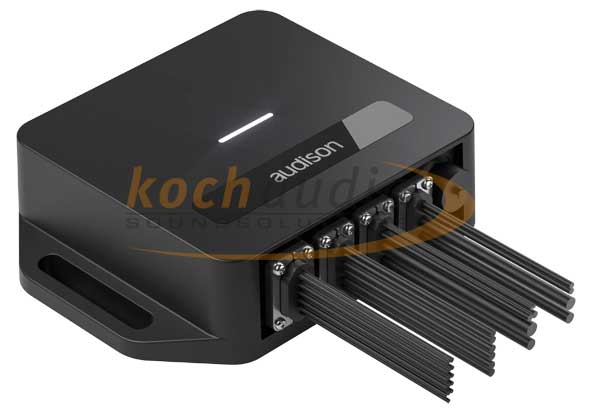

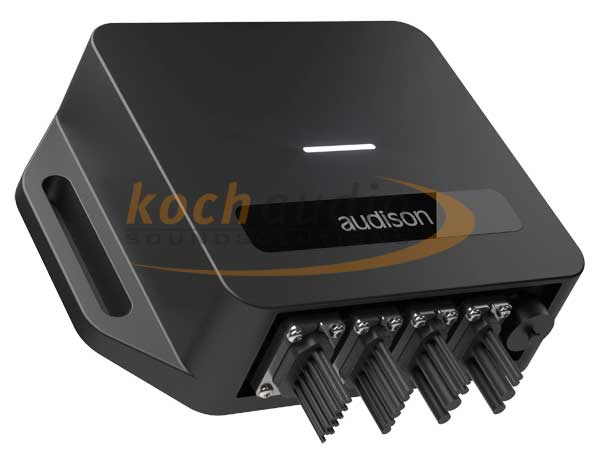

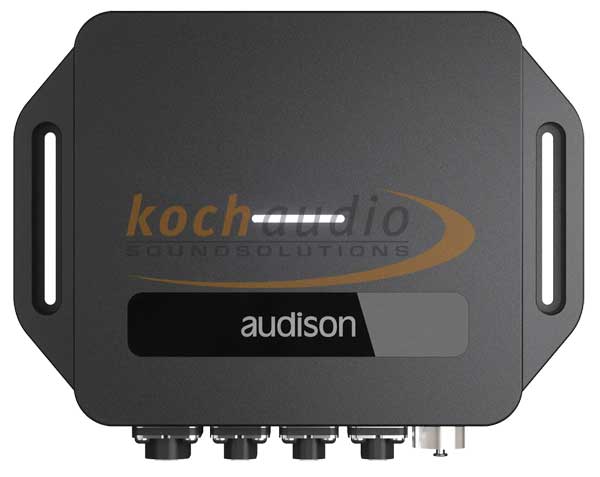

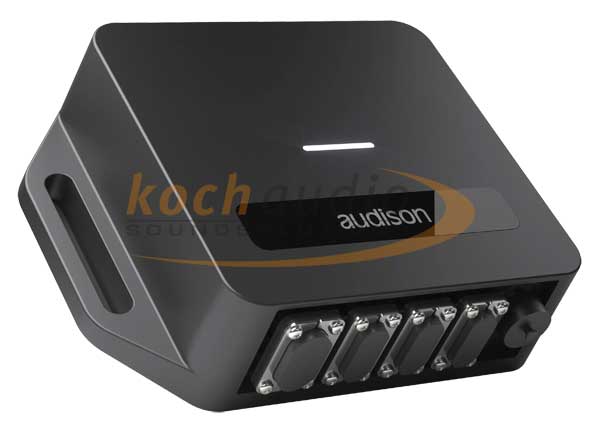

ARMONIA is the source of the ecosystem, engineered to disappear from sight and command the entire system. Native DSP at 24 bit/96 kHz with a band extended to 40 kHz, four independent listening zones each with dedicated subwoofer output and 8-band parametric EQ, wireless streaming with LDAC and aptX HD, and an A2B digital bus that reaches the amplifiers with no intermediate analog conversion. Multimedia
Peak Power 4 x 70 W
Front Panel IP Rating IP66
Line OUT 4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
Subwoofer OUT (RCA) 4x (LPF: ALL, 60, 80, 100 Hz)
AUX Input (RCA) 2x L+R
Equalizer CUSTOM 8 BANDS for each zone
EQ. Preset 8
Camera IN Yes
Battery Voltage Gauge Yes
Tuner AM/FM (RDS) (EU/US) Weather band
USB Yes (2A)
IPOD/IPHONE Yes
DAB+ Ready Ready
Siriusxm Ready Yes
Bluetooth 5.1 | Audio streaming with ID3 Tag Display | LDAC – AAC – APTX HD
Remote Control HMC HD1 (up to 4 zones) HMC U1 (up to 2 zones)
Unit Size W 146 (5.748) x H 105 (4.134) x D 121 (4.763)
Mounting Hole Size W 122 (4.8) x H 52 (2.05)
Mounting Depth 99 (3.89)
Mounting Method Panel mount (4 screws) Dimensions
Dimension A 197 mm (7.76 in)
Dimension A1 173 mm (6.8 in)
Dimension A2 197 mm (7.7 in)
Dimension B 150.65 mm (5.93 in)
Dimension C 50 mm (1.97 in)
Dimension D 5 mm (0.2 in)
Dimension B1 56 mm
