- Subwoofer Driver | 500 W Peak Power | 2 ohm/ 4 ohm | 250 mm
- The PORTOFINO 100 S2W/S4W is designed to bring powerful, deep bass to the most exclusive yachts, completing the refined sound signature of the PORTOFINO line. With its 10-inch flush-mount architecture, it integrates seamlessly into luxury marine environments, delivering impactful low frequencies without compromising elegance. Built with premium marine-grade materials, the PORTOFINO 100 S2W withstands the harshest elements—sun, salt, and sea—while preserving timeless beauty. Its ultra-low-profile grille blends effortlessly into yacht interiors, ensuring that the presence of the subwoofer is felt in the music, not seen in the design. For yacht owners who demand both sophistication and uncompromising audio performance, the PORTOFINO 100 S2W sets a new standard in luxury marine sound.
sharethis sharing button
- Powerful low frequencies – deep, impactful bass that enhances every voyage.
- Flush-mount design – ultra-low-profile installation for seamless integration.
- Fine mesh magnetic grille – elegant look with secure, tool-free attachment.
- Premium marine-grade materials – built to resist UV, salt, and moisture.
- 10-inch subwoofer performance – engineered for rich, controlled bass in open-air environments.
- Luxury-focused design – crafted to blend perfectly into exclusive yacht interiors.
- Benchmark value – premium sound and design with the best price-to-performance ratio in its class.
Technical Specs 2 Ohm
- Nominal diameter 250 mm (10 in)
- Impedance 2 Ohm
- Power Handling - Peak 500 W
Power Handling - Continuous 250 W
- Sensitivity 88.5 dB
- Frequency Response 20-350 Hz Hz
- Voice Coil Ø 50.8 mm
- Magnet Material HIGH DENSITY FLUX FERRITE
- Magnet size D x d x h 140 x 60 x 30 mm
- Voice Coil Material COPPER
- Cone Material POLYPROPYLENE WITH UV INHIBITORS
- Xmax 12.3 mm (0.48 in)
Xmech 16.3 mm (0.64 in)
- Technical Specs 4 Ohm
- Nominal diameter 250 mm (10 in)
- Impedance 4 Ohm
- Minimum Impedance 5 Ohm
- Power Handling - Peak 500 W
Power Handling - Continuous 250 W
- Sensitivity 88.5 dB
- Frequency Response 20-350 Hz Hz
- Voice Coil Ø 50.8 mm
- Chassis Material PLASTIC
- Magnet Material FERRITE
- Magnet size D x d x h 140 x 60 x 30 mm
- Voice Coil Material COPPER
- Cone Material POLYPROPYLENE WITH UV INHIBITORS
- Xmax 12.3 mm (0.48 in)
Xmech 16.3 mm (0.64 in)
- Electric-acoustic Specs 2 Ohm
- Re 2.1 Ohm
- Fs 43 Hz
- Le 0.46 mH
- Vas 30.46 l (1.076 ft)
- Mms 75.6 g (2.667 oz)
- Cms 0.18 mm/N
- BL 8.3 T•m
- Qts 0.6
Qes 0,63
Qms 12.3
- Electric-acoustic Specs 4 Ohm
- Re 2.1 Ohm
- Fs 43 Hz
- Le 0.46 mH
- Vas 30.46 l (1.076 ft)
- Mms 75.6 g (2.667 oz)
- Cms 0.18 mm/N
- BL 8.3 T•m
- Qts 0.6
Qes 0.63
Qms 12.3
- General
- Grilles Included Yes
- Total Weight 5.8 kg (12.787 lb)

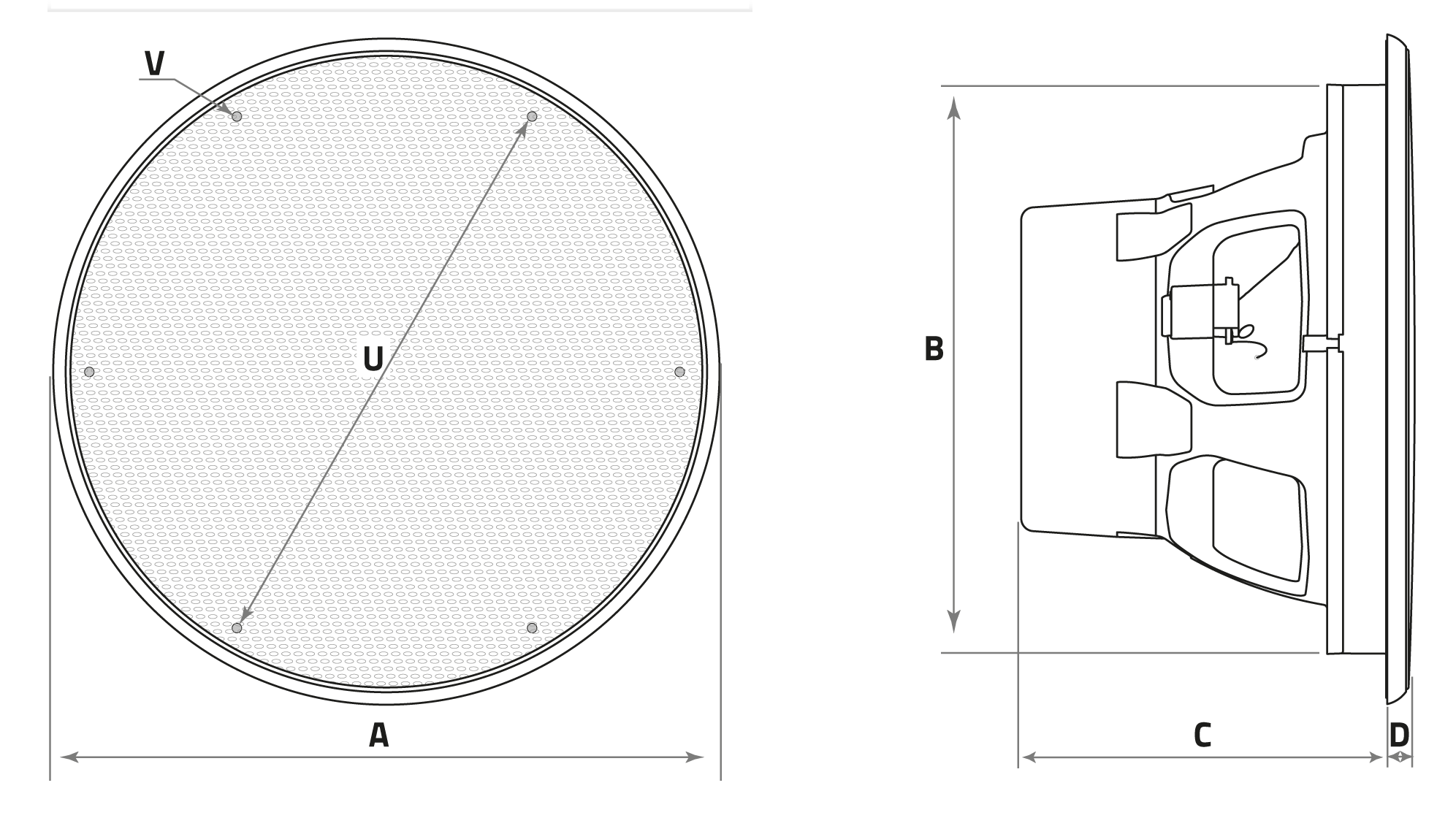

Dimensions
- Dimension A 319 mm (12.56 in)
Dimension B 271.3 mm (10.68 in)
Dimension C 174 mm (6.85 in)
Dimension D 11.6 mm (0.46 in)
Dimension U 291 mm (11.46 in)
Dimension V 5.5 mm (0.22 in)

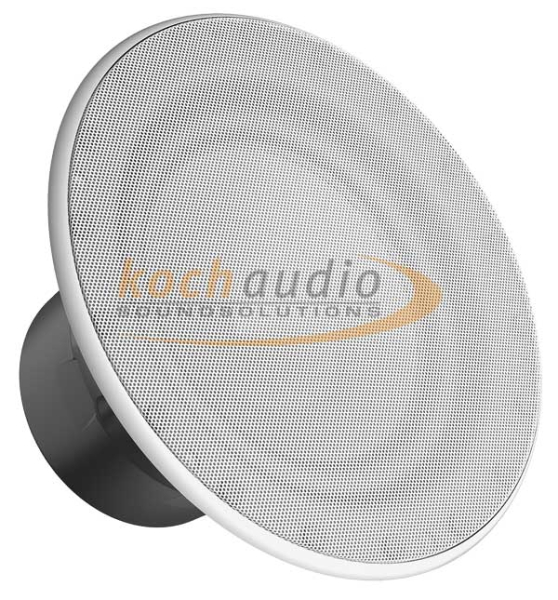

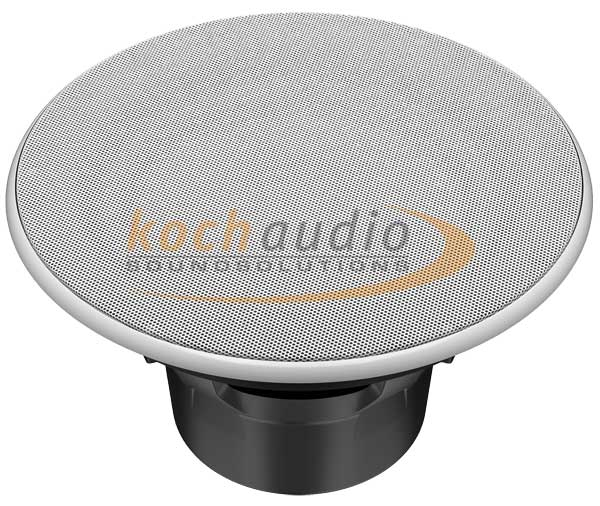

- Farbe: weiß oder schwarz
- Impedanz: 2 Ohm oder 4 Ohm
- Preis pro Stück
