The ZDSP8 is designed for sound quality enthusiasts who demand precision, flexibility, and seamless OEM integration. Built around a premium Burr Brown DAC and delivering 5V RCA outputs, it provides exceptional signal clarity and dynamic range – making it the perfect foundation for high-performance audio systems with precise tuning and maximum control.
With 8 channels of processing, advanced tuning capabilities, and multiple input options, the ZDSP8 gives you full control over your system – whether you’re upgrading a factory setup or building a fully active system. Key Features
– 8-channel DSP with full active capability
– Burr Brown DAC for high-quality signal processing
– 5V RCA outputs for a strong, clean signal
– Bluetooth V5.0 built-in for direct streaming
– OEM integration with OIS
– Input Priority for seamless OEM + digital use
– Advanced tuning software (PC + App) Bluetooth V5.0 Built-in
The ZDSP8 has Bluetooth V5.0 built in with an external antenna, providing extended range and a stable connection – ideal for both in-car listening and playing your system from outside the vehicle.
OIS – OEM Impedance Simulation
The ZDSP8 is equipped with OEM Impedance Simulation (OIS), ensuring compatibility with modern head units and amplifiers. By simulating speaker impedance, it maintains the functionality of your vehicle’s OEM head unit and prevents potential issues in OEM installations. Input Priority
The Input Priority feature ensures effortless integration with your vehicle’s OEM head unit. You can use low-level inputs or digital sources such as Bluetooth, Optical, or Coaxial, without losing vital system sounds like parking sensors, alerts, and radio signals. For instance, if your vehicle has a high-pass filter that limits bass output, you can bypass this limitation by streaming audio directly to the DSP via Bluetooth while maintaining full OEM functionality. Preset Switch Trigger
The Preset Trigger lets you instantly switch between two sound profiles using a 12V signal. It toggles between the active preset and preset 6 – ideal for setups where listening conditions change. For example, in a motorhome, you can have one preset tuned for driving and another for when parked.
With a simple 12V trigger connection, the DSP automatically switches presets – no manual adjustment needed. Software
Take control of your sound system with the free, user-friendly PC software (compatible with Windows 10 and 11). Connect via the included USB-B cable and unlock a suite of powerful tuning tools:
31-Band Parametric EQ (PEQ) for precise frequency adjustments
Choose filter types (Bessel, Butterworth, Linkwitz-Riley) with adjustable slopes from -6dB to -48dB.
Time alignment with a built-in delay calculator
Fully custom channel routing
Custom link options (Copy or Relate). With these advanced features, you can tune your sound system to your preferences. Included in the Package:
1x ZDSP8 DSP
1x USB-B Cable (1m)
1x Universal Connection Cable (15cm)
1x Instruction Manual
4x Mounting Feet (with screws) Hardware Specifications
Product: ZDSP8
Type: DSP (Digital Signal Processor)
DSP Channels: 8
RCA Voltage Output: 5V
DAC: Burr Brown PCM1681
Frequency Response (-3dB): 10Hz ~ 22kHz
DSP Resolution: 24 Bit
Sampling Rate: 48kHz
SNR (Analogue/Digital Input): -100dB
THD: 0.1%
High-Level Input: Yes
Auto Turn-On: Yes
Input Sensitivity (High-Level): 0.2V – 20V
Input Sensitivity (Low-Level): 0.2V – 20V
Operating Voltage: 9V – 15V
12V Preset Switch Trigger Input: Yes
Start-Stop Compatible: Yes
Current Draw (MAX): 0.5A
Remote (Optional): ZDAWCT

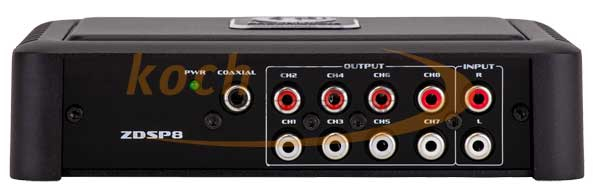

Low-Level Outputs (RCA): 8

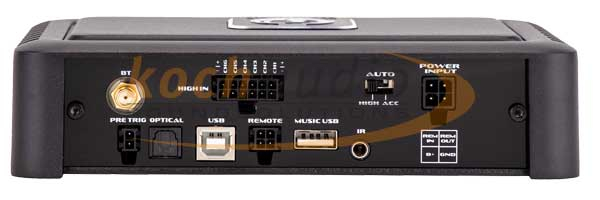

Analogue Inputs: 6 x High-Level / 2 x Low-Level
Digital Inputs: Bluetooth / Coaxial / USB / SPDIF
Remote Input: Yes
Remote Output: Yes
Total Efficiency (4Ω): 60%
Power Terminal: 10mm²
PC Connection Input: USB-B (Cable Included)
APP Control: Yes Android (iOS Launching 2026) Software Specifications
Product: ZDA4.8 / ZDA6.8 / ZDA8.8 / ZDSP8
PC Software: Yes (Windows 10, Windows 11)
APP: Yes (Coming Soon)
Equalizer: 31-Band
Phase Adjustments: 0 or 180 degree
Filters: High-Pass & Low-Pass
Filter Types: Bessel, Butterworth, Linkwitz-Riley
Filter Slopes (Bessel/Butterworth): Off, -6dB, -12dB, -18dB, -24dB, -36dB, -42dB, -48dB
Filter Slopes (Linkwitz-Riley): Off, -12dB, -24dB, -48dB
Time Alignment: 0 – 48ms (0 – 1632cm)
Bypass EQ: Yes (Individual channels & ALL channels)
Mute: Yes (Individual channels & ALL channels)
Input Priority: Yes (2 Sources)
Turn-On Delay: Yes (5 – 30sec)
Custom Signal Routing: Yes
EQ Settings: Graphic EQ / Parametric EQ
Delay Calculator: Yes (cm and inches)
Delay Unit: Centimeters / Inches / Milliseconds
Custom Link Settings: Copy & Relate (Delay/EQ/Filters/Volume)
Input Setting (Input Sensitivity): -6dB, -3dB, 0dB, +3dB, +6dB
Preset Password Protection: Yes
Full Screen Mode: Yes
EQ Band Gain: (Each EQ Band) -12dB to +12dB
Adjustable Q Value: 0.1 to 12
Languages: English, German, Spanish & Chinese
EQ Adjustable Frequency Range: 20Hz – 20kHz
Individual Channel Gain: 0dB to -59dB
Global Volume Gain: 0dB to -28dB
Selectable Channel Names: Yes, for each channel Preis pro Stück
