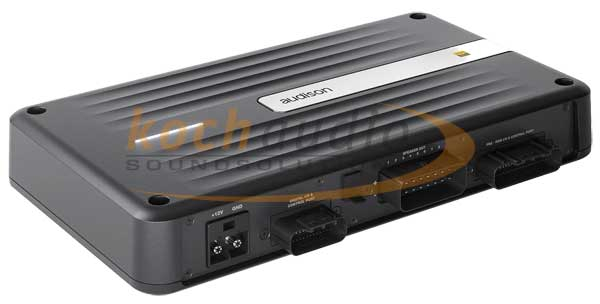

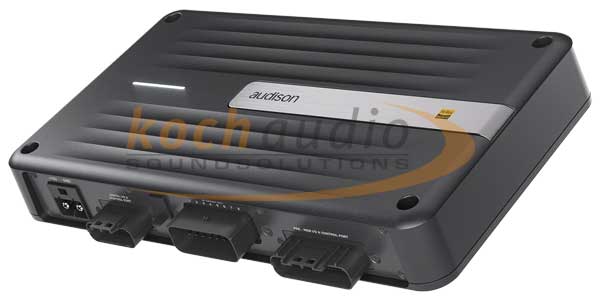

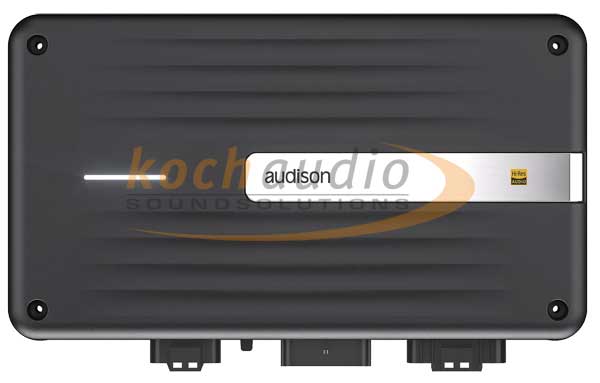

- DSP Amplifier | 2200 W | 14 CH DSP + 8 x 275 W @ 2 ohm | D-class Fully Bridgeable
- TH OTTO BIT is the intelligence at the centre of the system. Two Analog Devices processors work in parallel at 24 bit/96 kHz, preserving the full resolution of the recording, while EVOCA models the behaviour of every Thesis driver and corrects deviations before they become audible. Eight channels, sixteen DSP channels over the A2B bus, and bit Wave to shape every zone on board.
Amplifier Tech Data
- Channels 8
- Class ADC (Advanced D-Class)
- Power supply voltage / fuse 11 ÷ 15 VDC
- Idling current 2.7 A
- Standby Current Draw 1.7 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power 100 A
- Remote IN 4 ÷15 VDC (1 mA)
Remote OUT 6.5 ÷15 VDC (150 mA)
- Efficiency Rated Power 85% (4 ohms rated power)
Amplifier Stage
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power <0.04% THD+N @70% Rated Output Power, 4Ω, 1kHz
- Bandwidth @ -1.5 dB 7 - 42k Hz
- Damping factor @ 1 kHz, 4Ω, 2 VRMS 125
- S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA
- Total Power RMS 2200 W
- Minimum load impedance 2 ohms (STEREO) / 4ohms (BRIDGE)
- Output Continuous Power (RMS) @14.4 VDC, 1% THD 170W x 8 (4ohms)
275W x 8 (2ohms)
550W x 4 (4ohms - Brigded 1/2, 3/4, 5/6, 7/8)
- Adjustable Crossover Yes
Inputs / Outputs
- Pre-In Sensitivity 0.6 ÷ 6 Vrms (10 kΩ impedance)
- Digital Input Yes
- Pre Outputs 6
- Low Level Inputs 12
- Digital IN Coaxial S/PDIF , Max 96 kHz / 24 bit
- Sub Out (RCA Pre Out) 6 Vrms
Digital Signal Processor
- Audio DSP Converter 2 x Analog Devices ADAU1467 automotive qualified audio processor.
- Filter type Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
- QLP @ 6 dB/Oct.
- Crossover frequency 20 Hz ÷ 20 kHz
- Phase control 0° / 180°, All-Pass filters
- Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
- Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
- Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay 0 ÷ 15 ms
Time Alignment Step 0.01ms
- Input/Output electrical RTA Yes

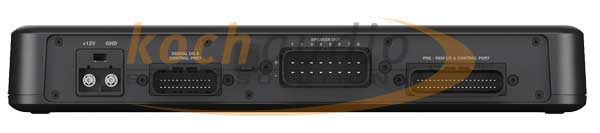

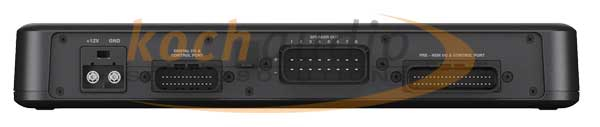

Control Connections
- DRC Port CAN-BUS
ADC Port RS-232
- 1 Wire Customizable functions (+ 12 V activated) over 4 Control Inputs
- From / To Personal Computer USB-C 1.1 / 2.0 / 3.0 Compatible
General Requirements
- PC connections Windows 10, Windows 11 (min. res. 1024 x 768)
- Software/PC requirements Bit Wave
- Ambient operating temperature range -15°C ÷ 55°C (5 °F to 131 °F)
Dimensions
- Dimension A 360 mm (14.17 in)
Dimension B 320 mm (12.6 in)
Dimension C 203 mm (7.99 in)
Dimension D 163 mm (6.42 in)
Dimension E 55 mm (2.17 in)
Dimension C1 239 mm (9.41 in)
