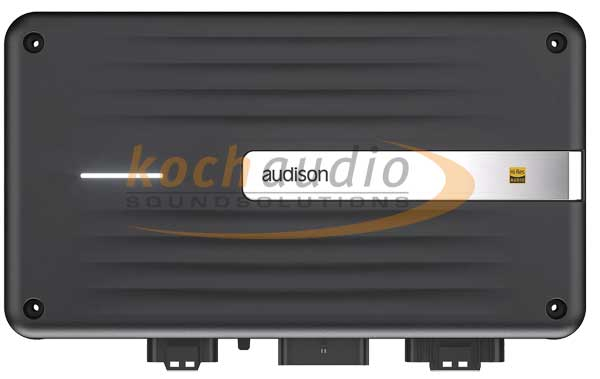

- DSP Amplifier | 2000 W | 14 CH DSP + 6 x 275 W @ 2 ohm | D-class Fully Bridgeable
- The same intelligence as the eight-channel, in the format sized for compact systems and secondary zones. TH SEI BIT carries the identical Dual-Core DSP architecture, EVOCA driver modeling and bit Wave tuning, with six channels of Thesis-grade power and no compromise on processing quality.
Amplifier Tech Data
- Channels 6
- Class ADC (Advanced D-Class)
- Power supply voltage / fuse 10 ÷ 15 VDC
- Idling current 2.3 A
- Standby Current Draw 1.7 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power 65 A
- Remote IN 4 ÷15 VDC (1 mA)
Remote OUT 6.5 ÷15 VDC (150 mA)
- Efficiency Rated Power 84.5% (4 ohms rated power)
Amplifier Stage
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power <0.04% THD+N @70% Rated Output Power, 4Ω, 1kHz
- Bandwidth @ -1.5 dB 7 - 42k Hz
- Damping factor @ 1 kHz, 4Ω, 2 VRMS 125
- S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA
- Total Power RMS 2000 W
- Minimum load impedance Stereo Ch 1-4: 2Ω; Ch 5-6: 1Ω Bridged Ch 1-4: 4Ω; Ch 5-6 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD 6CH mode: 170W x 6 (4ohms)
6CH mode: 275W x 6 (2ohms)
6CH mode: 250W x 4 (Ch1-Ch4 2ohms) + 500W x 2 (Ch5-Ch6 1ohms)
5CH mode: 155W x 4 (Ch1-Ch4 4ohms) + 600W x 1 (Ch5-Ch6 bridged 4ohms)
5CH mode: 250W x 4 (Ch1-Ch4 2ohms) + 1000W x 1 (Ch5-Ch6 bridged 2ohms)
4CH mode: 570W x 2 (Ch1&2, Ch3&4 Bridged 4ohms) +150W x 2 (Ch5-Ch6 4ohms)
4CH mode: 240W x 2 (Ch1&Ch2 2ohms) + 500W (Ch3&Ch4 bridged 4ohms)+ 1000W x 1 (Ch5-Ch6 bridged 2ohms)
3CH mode: 550W x3 (4ohms)
3CH mode: 500W x2 (Ch1/2-Ch3/4 bridged 4ohms) + 1000W x 1 (Ch5-Ch6 bridged 2ohms)
- Adjustable Crossover Yes
Inputs / Outputs
- Pre-In Sensitivity 0.6 ÷ 6 Vrms (10 kΩ Impedance)
- Digital Input Yes
- Pre Outputs 8
- Low Level Inputs 12
- Digital IN Coaxial S/PDIF , Max 96 kHz / 24 bit
- Sub Out (RCA Pre Out) 6 Vrms
Digital Signal Processor
- Audio DSP Converter 2 x Analog Devices ADAU1467 automotive qualified audio processor.
- Filter type Full / High-Pass / Low-Pass / Band-Pass
- Filter mode and slope Linkwitz-Riley @ 12/24/36/48 dB/Oct.
Butterworth @ 6/12/18/24/30/36/42/48 dB/Oct.
Bessel @ 6/12/18/24/30/36/42/48 dB/Oct.
Chebyshev @ 6/12/18/24/30/36/42/48 dB/Oct.
- QLP @ 6 dB/Oct.
- Crossover frequency 20 Hz ÷ 20 kHz
- Phase control 0° / 180°, All-Pass filters
- Analog Input Equalizer (20 ÷ 20k Hz) 12 Biquad + Delay
- Output Equalizer Parametric/Graphic Biquad: 15 poles, 20 Hz ÷ 20 kHz
- Time Alignment Distance 0 ÷ 510 cm / 0 ÷ 200.8 inches
Time Alignment Delay 0 ÷ 15 ms
Time Alignment Step 0.01ms
- Input/Output electrical RTA Yes
Control Connections
- DRC Port CAN-BUS
ADC Port RS-232
- 1 Wire Customizable functions (+ 12 V activated) over 4 Control Inputs
- From / To Personal Computer USB-C 1.1 / 2.0 / 3.0 Compatible
General Requirements
- PC connections Windows 10, Windows 11 (min. res. 1024 x 768)
- Software/PC requirements Bit Wave
- Ambient operating temperature range -15°C ÷ 55°C (5 °F to 131 °F)
Dimensions
- Dimension A 360 mm (14.17 in)
Dimension B 320 mm (12.6 in)
Dimension C 203 mm (7.99 in)
Dimension D 163 mm (6.42 in)
Dimension E 55 mm (2.17 in)
Dimension C1 139 mm (9.41 in)
