- Tweeter | 150 W Peak Power Filtered | 25 mm (1.0 in.) | 4 ohm
- The Audison Voce AV 1.0 II tweeter is designed to deliver the renowned VOCE sound quality in a more versatile and accessible solution. Featuring a 25 mm Tetolon soft dome, it was developed to ensure a natural and accurate sound timbre, providing detailed and smooth high-frequency reproduction. The use of Tetolon material guarantees a refined listening experience with excellent tonal balance, making the AV 1.0 II an ideal choice for high-quality OEM upgrades and compact 2-way systems. Its optimized design ensures consistent performance even in off-axis conditions, a key requirement for in-car applications. Supplied with a dedicated grille, the AV 1.0 II is engineered for easy integration across a wide range of installations, combining performance, reliability, and installation simplicity. This careful balance of sound quality, material selection, and application flexibility makes the AV 1.0 II a perfect entry point into the Audison VOCE II experience.
- Hi-Res Audio certification with extension up to 40 kHz: Ensures detailed high-frequency reproduction with improved off-axis response, delivering exceptional sound even when the tweeter is not perfectly oriented towards the listener, ideal for automotive installations.

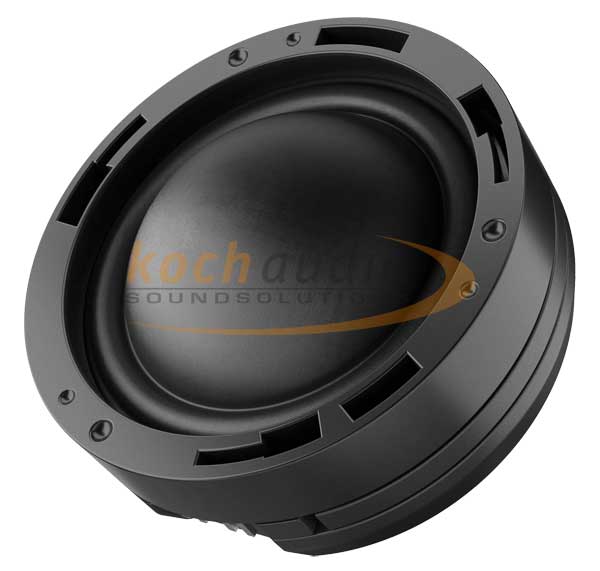

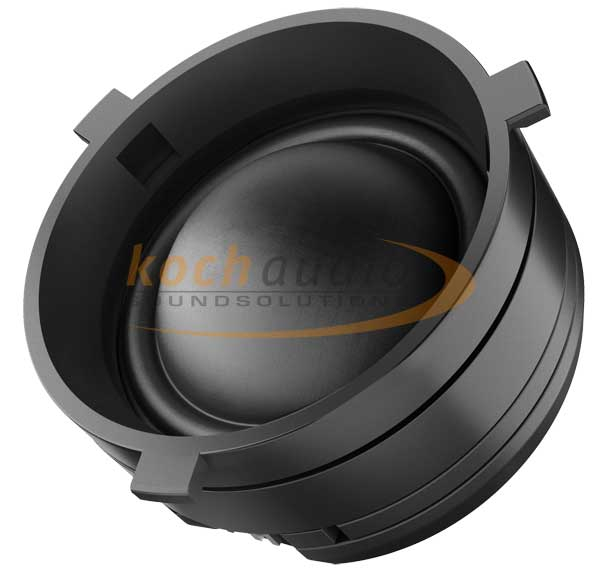

- Tetolon soft dome: Optimized through precise material characterization, laser vibrometer scanning, and advanced simulations, ensuring a smooth and extended response, offering warm and natural sound reproduction.
- 1” (25 mm) CCAW voice coil: Lightweight and stable, it eliminates musical transient compression, ensuring low distortion for clean and natural sound, even at high SPL level.
- Powerful neodymium magnet: Designed to provide superior dynamic response and minimal distortion across the frequency spectrum, improving sound clarity and precision.
- Installation Flexibility: Equipped with OEM-style and Faston connectors, offering maximum installation versatility. Includes two provided adhesive Audison logos, allowing for personalized placement to enhance branding and aesthetics.

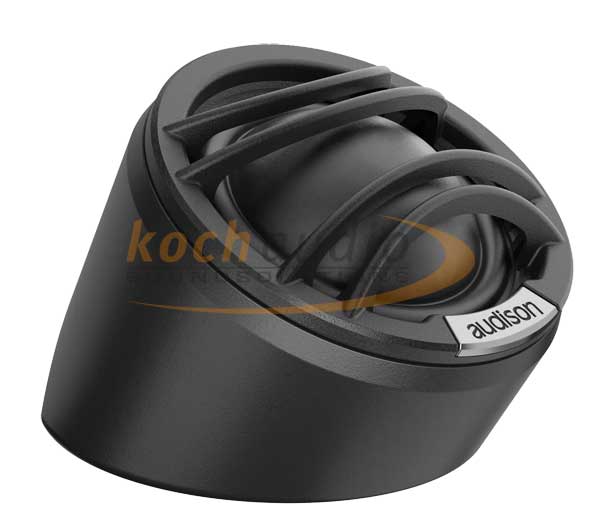

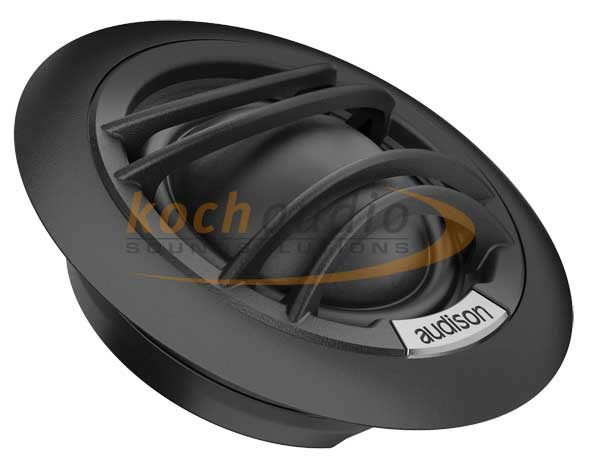

- AIF (Any Install Faceplate) Technology: Designed to ensure total installation flexibility and significantly reduce installation time, offering two faceplates and three mounting accessories for any configuration.
- FEM-optimized faceplates (Finite Element Method): Improve sound dispersion for a balanced and immersive listening experience from any angle.

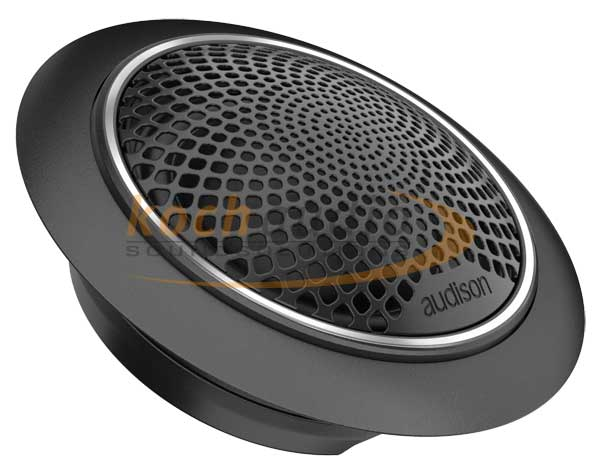

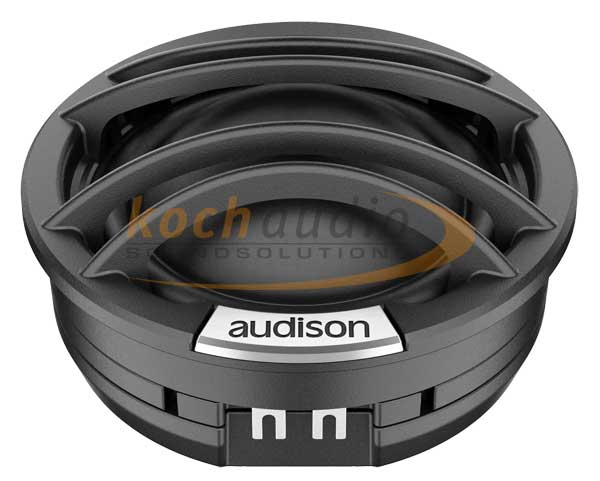

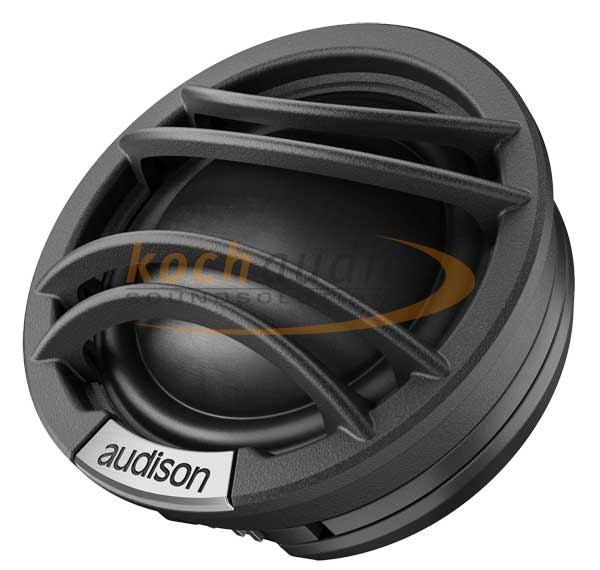

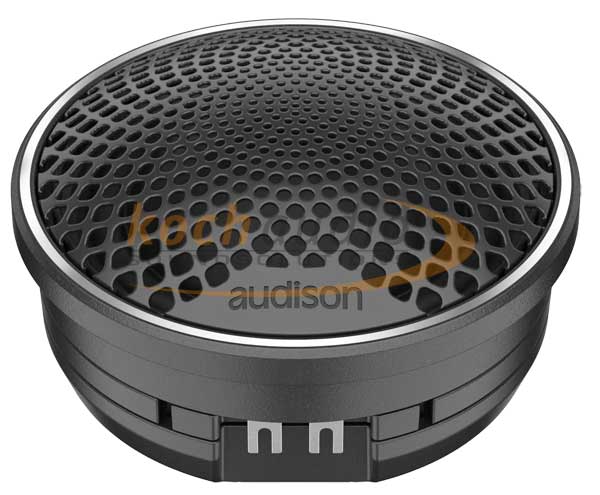

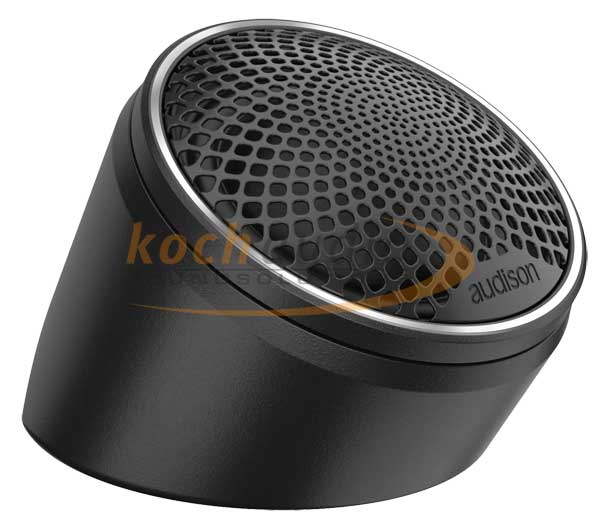

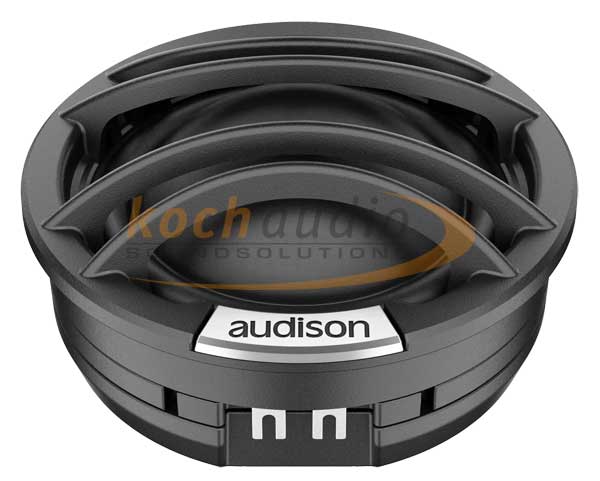

- Mesh and spoke grilles: Both grilles are included to ensure perfect integration within the vehicle cabin, combining aesthetics and performance.
- eID technology: Provides tweeter traceability from production to the owner, guaranteeing authenticity and product security.
Technical Specs
- Nominal diameter 25.4 mm (1 in)
- Impedance 4 Ohm
- Minimum Impedance 3.9 Ohm
- Power Handling - Peak 150 W
- Frequency Response 1200 - 40000 Hz Hz
- Voice Coil Ø 25 mm (0.98 in)
- Magnet Material NEODYMIUM
- Voice Coil Material CCAW
- Dome Material TELOTON FIBRE
- Former Material ALUMINUM
- Diaphragm Surround Material TETOLON FIBRE
- Ferrofluid No
- Electric-acoustic Specs
D 5.07 cm² (0.786 in²)
Re 3.54 Ohm
Fs 1506 Hz
Le 0.015 mH
Mms 0.229 g (0.008 oz)
Cms 0.049 mm/N
BL 2.01 T•m
Qts 1.257
Qes 1.9
Qms 3.713
- Preis pro Paar
