Woofer | 250 W Peak Power | 165 mm (6.5 in.) | 4 ohm
The Audison VOCE II AV 6.5 S II woofer is engineered to deliver a smooth and natural sound reproduction, with a strong focus on tonal balance and ease of integration. Its optimized electro-acoustic design ensures a controlled frequency response and consistent performance in off-axis installations, supporting a coherent and realistic sound stage in typical door applications. The woofer can be effectively paired with simple crossover solutions, including gentle filtering slopes, enhancing low and mid-bass response while preserving clarity and musicality. Designed for installation versatility, it features an OEM-style connector compatible with FASTON terminals for seamless integration into factory systems. The motor structure is optimized to minimize distortion and ensure clean, controlled performance, making the AV 6.5 S II a reliable and flexible solution for high-quality 2-way systems. Technical Specs
Nominal diameter 165 mm (6.5 in)
Impedance 4 Ohm
Power Handling - Peak 250 W
Sensitivity 91 dB
Frequency Response 50 - 5500 Hz Hz
Voice Coil Ø 36 mm (1.42 in)
Chassis Material ALUMINIUM
Magnet Material HIGH DENSITY FLUX FERRITE
Magnet size D x d x h 92 x 42 x 15 mm mm
Voice Coil Material CCAW
Former Material TIL
Cone Material PRESSED PAPER CONE
Surround Material RUBBER
Xmax 4.2 mm (0.17 in)
Xmech 6.7 mm (0.26 in)
Voice Coil Winding Height 11.4 mm (0.45 in)
Gap Height 6 mm (0.24 in) Electric-acoustic Specs
D 128.3 cm² (19.887 in²)
Re 2.9 Ohm
Fs 67 Hz
Le 0.3 mH
Vas 10.28 l (0.363 ft)
Mms 13.2 g (0.466 oz)
Cms 0.43 mm/N
BL 4.9 T•m
Qts 0.61
Qes 0.67
Qms 6.76 General
Weight 1.3 kg Dimensions

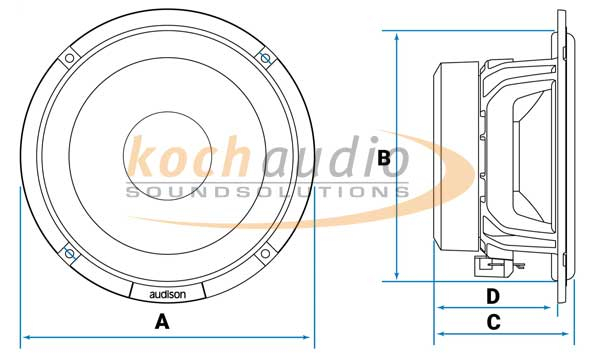

Dimension A 165 mm (6.5 in)
Dimension B 140.8 mm (5.54 in)
Dimension C 65.6 mm (2.58 in)
Dimension D 61 mm (2.4 in) Preis pro Paar
